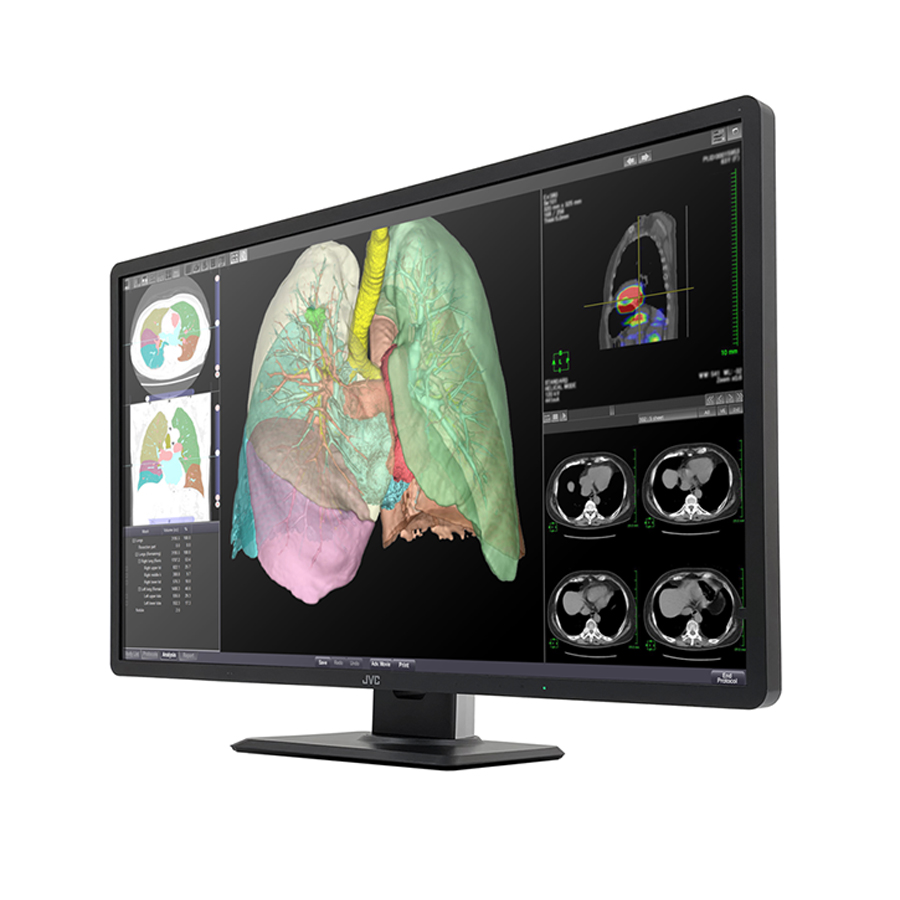

JVC CL-R813 8MP 32″ COLOR MONITOR WIDE

The seamless screen with a wide area of 32 inches and a high resolution of 8 million pixels reduces the load of eye movement and provides a comfortable diagnostic imaging environment. Various images such as DR, CT, MRI and pathology can be displayed and it is free to arrange the layout of windows, significantly improving image reading efficiency.

More Information
Manufacturer JVC
Condition New
Screen Technology/Type 32-inch, color, TFT, IPS technology
Screen Size (diagonal) 32 inches
Display Resolution 3840 x 2160
Pixel Pitch 0.1845 mm x 0.1845 mm
Viewing Angle (H, V) 178° vertical and horizontal
Maximum Luminance 500 cd/m² (typ.)
Calibrated Luminance 280 cd/m² (calibrated)
Contrast Ratio 1000:1 (typ.)
Video Input Connectors DVI-D x 1, DisplayPort (DisplayPort 1.2) x 2
Video Output Connectors DisplayPort (DisplayPort 1.2) x 1
Power Input Requirements 100V – 240 V 50/60 Hz
Dimensions with Stand (W x H x D) 742 mm x 487.5~582.5 mm x 196.5 mm
Net Weight with Stand approx. 10 kg
Mounting Options VESA standard (100 mm x 100 mm)
Certifications ANSI/AAMI ES60601-1 (2005) + A1 (2012), CAN/CSA-C22.2 No. 60601-1 (2014), CE (EN60601-1, EN60601-1-2), FCC Part15 subpart B Class B, ICES-003-B, VCCI-B, FDA510(k), J-Moss, RoHS, RCM
Supplied Accessories Power cord, DVI cable, DisplayPort cable, USB cable, Instruction manual, Software (QA Medivisor Agent LE)
SKU JVC-CL-R813 Category
