Vieworks

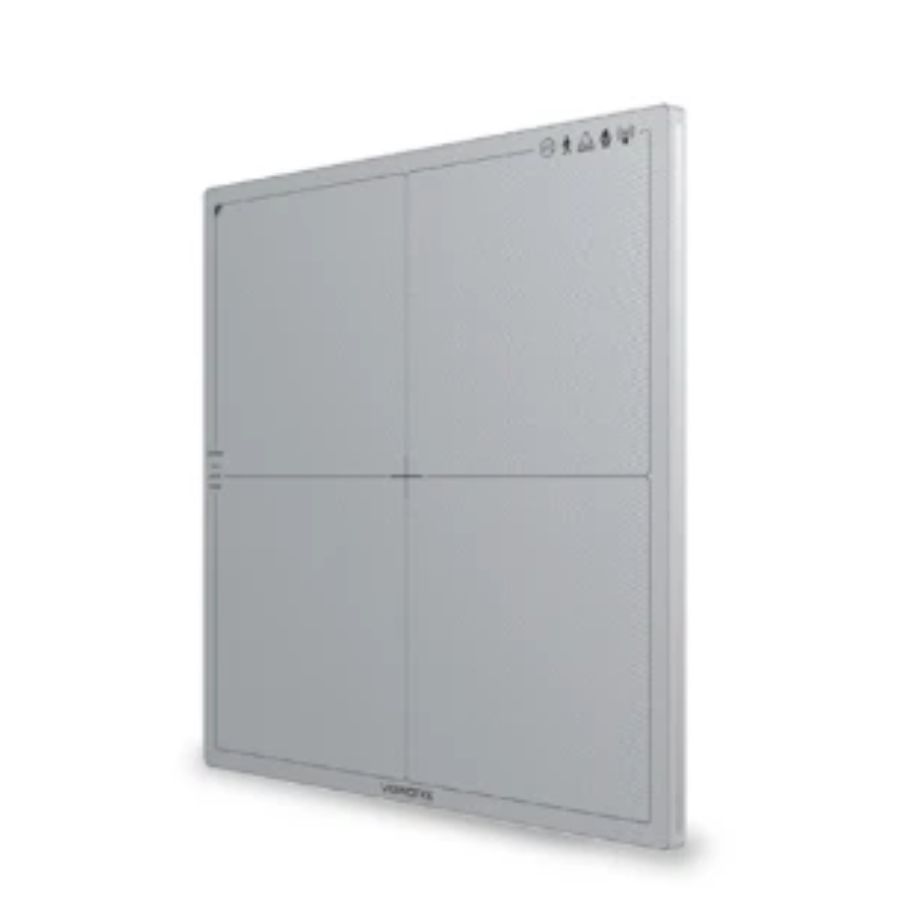

VIVIX-S V Series

Description

The VIVIX-S V Series is a multi-purpose portable flat-panel detector for veterinary or general radiographic applications. With its enhanced durability you are assured simple management and low maintenance costs. In addition, with its fast wireless communication patients have a shorter through-put performance. In addition for the first time, this panel has a NFC (Near Field Communication) function for quick and easy configuration.

  • Available in Gadolinium and Cesium
  • High spatial resolution with 140um pixel array
  • Stable and reliable automatic exposure detection (AnytimeTM)
  • Fast booting time of 15 seconds
  • Robust mechanical structure
  • 16 bit analog-to-digital conversion
VIVIX-S Detectors: VIVIX-S 1717V
Detector size: 17 x 17″ (43 x 43 cm)
Scintillator: CsI / GoS
Connection type: Fixed
Pixel matrix: 3072 x 3072
Pixel pitch: 140 μm
Dimensions: 18″ x 18″ x 0.6″
Weight: 9.9 lbs.
Bit depth (A/D): 16 bit A/D
Image display: 2 sec.
Cycle time: 15 sec.
Limiting Resolution: 3.5 lp/mm
Battery: N/A
